PC Offline Power Supply 400va / 500va / 600va 12 Voltage Simulated Sinewave

Product Categories

Shangyu (Shenzhen) Technology Co. Ltd

Contact Now

Name: PC Offline Power Supply 400va 500va 600va 12 Voltage Simulated Sinewave
Brand: CPSY
Price: 1 USD

Brand Name : CPSY

Model Number : S series

Certification : CE

Place of Origin : Guangdong China

MOQ : 200 pieces

Price : USD +18-81 +Pieces

Payment Terms : T/T

Supply Ability : 2000+piece+per month

Delivery Time : 5-8 work days

Packaging Details : 600*350*250mm carton

Material : Plastic

Wave : simulated sinewave

factor : 0.6

Transfer time : 2-8ms

Battery : 12V 7ah

support : Short Circuit, Overload/overdischarge,etc

Contact Now

Line interactive ups for home, computer and mini-application:

Shenzhen Shangyu Electronic Technology Co., Ltd
S series Technical date
MODEL	S400	S450	S500	S550	S600	S650	S800	S850	S1000-12V	S1050-12V
LED/LCD	LED	LCD	LED	LCD	LED	LCD	LED	LCD	LED	LCD
CAPACITY	400VA / 240W		500VA / 300W		600VA / 360W		800VA / 480W		1000VA / 500W
INPUT
Voltage	220/230/240 VAC
Voltage Range	162-290 VAC
Frequency Range	60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	220VAC±10%
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Simulated Sine Wave
BATTERY
Battery Type & Number	12 V/7Ah x 1						12 V/9 Ah x 1
Typical Recharge Time	4-6 hours recover to 90% capacity
PROTECTION
Full Protection	Overload, discharge, Short circut, and overcharge protection
INDICATORS
LCD Display	AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery
LED Display	AC Mode	Green lighting
	Battery Mode	Yellow flashing
	Fault	N/A
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D x W x H (mm)	284X100X140
Net Weight (kgs)	4.2		4.5				4.9		5.1
ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 40dB
MANAGEMENT

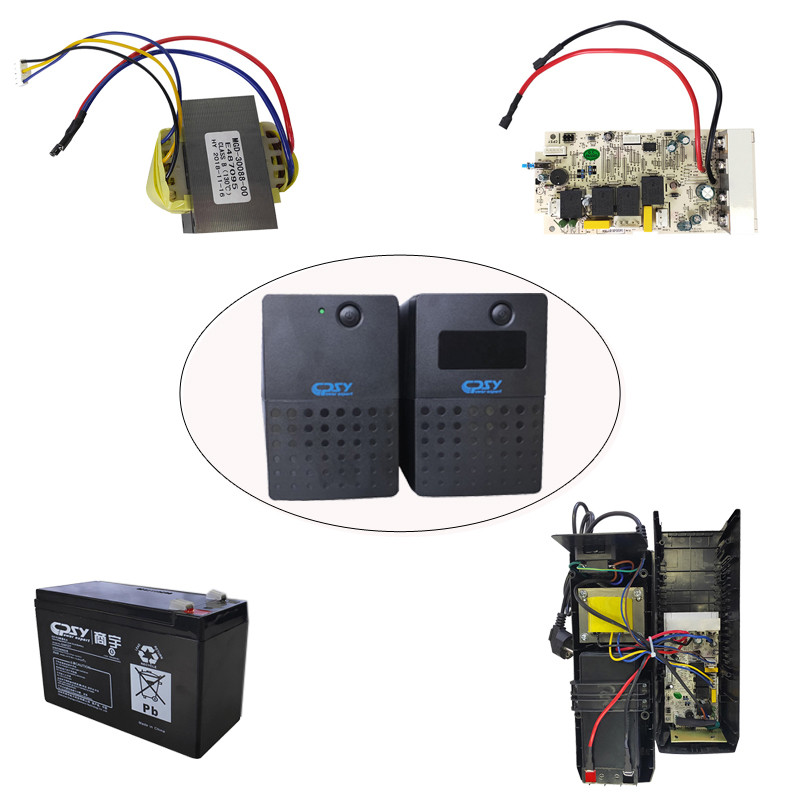

Picture:

PC Offline Power Supply 400va / 500va / 600va 12 Voltage Simulated Sinewave
